2016 Pace Arrow LXE
The iconic Pace Arrow LXE is built on a Power Bridge® chassis that provides immense storage capacity and is designed with impressive standard features that make choosing the right motorhome easy. The hard part will be deciding where to travel to first.
The Manufacturer's Suggested Retail Price is in US Dollars and excludes destination freight charge, tax, title, license, dealer fees and optional equipment. CLOSE
$228,000
*
MSRP
UP TO 340 HP

FLOOR PLANS 38B, 38K
SLEEPS 6
BROCHURE FIND A DEALER
× CLOSE VIDEO
2016 Pace Arrow LXE Video
Aztec Quartz
Spiced Java

1 / 9

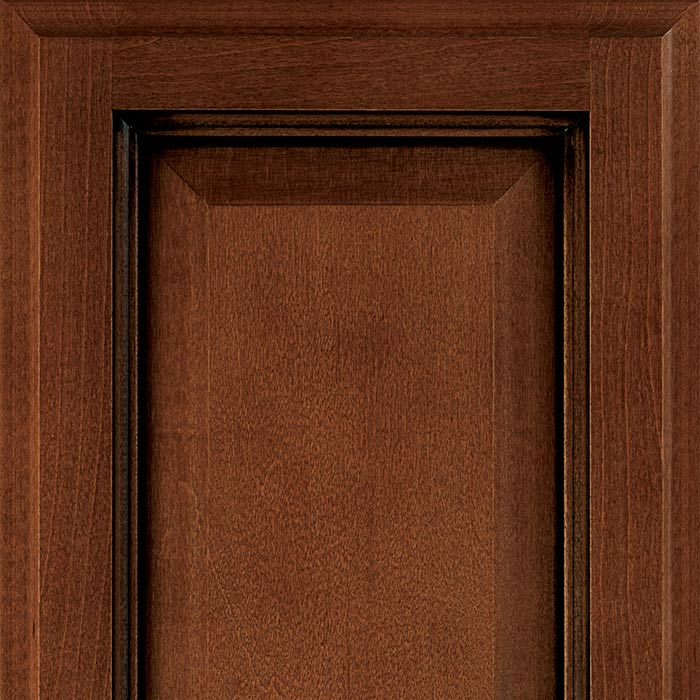

38K shown in Spiced Java interior décor with Barcelona wood cabinetry
Pace Arrow LXE Floor Plans
Floor Plans
Why Buy


Pace Arrow LXE features the most popular floorplans in the motorhome industry. Whether you wish to travel as a family or reprieve in a private getaway, Pace Arrow offers floorplans that maximize space and layouts making life on the road feel just like home - or paradise - wherever you are.
38B

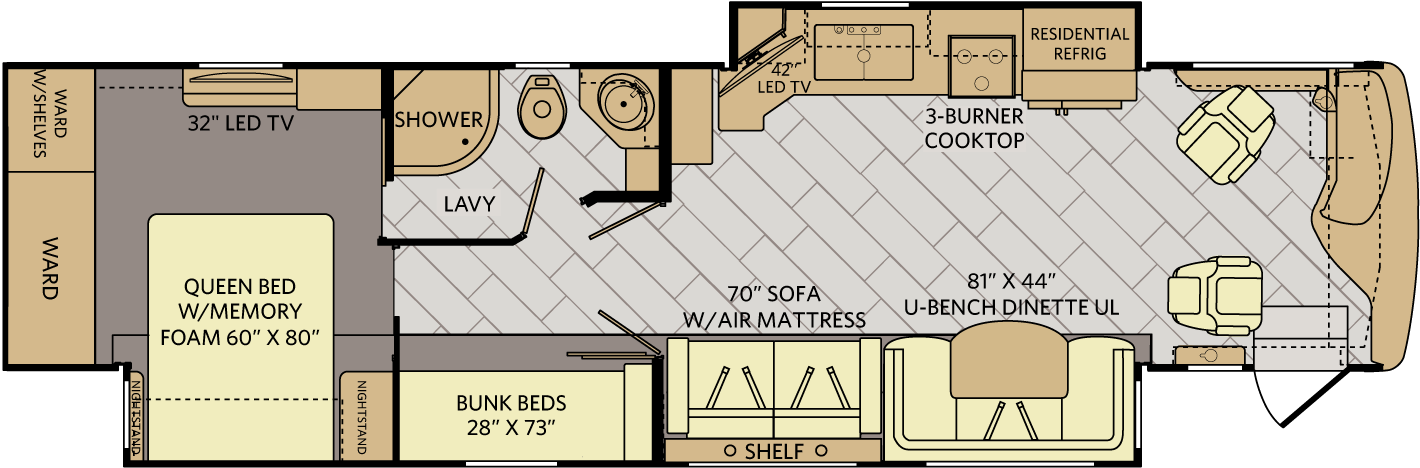

Pace Arrow LXE 38B
Length: 38' 7.5"
Pace Arrow LXE 38K
Length: 38' 7.5"
Refined Styling
Popular
Performance
Divergence
Confidence
Welcome Home, Friend

A sophisticated palette of colors and patterns delicately paired with luxurious 12" x 24" plank style flooring and rich furnishings create a warm and welcoming atmosphere to enjoy.

Pace Arrow LXE 38B Floor Plan Options
Front 32
OPT087
Front 32" LED TV
Stackable Washer/Dryer
OPT131
Stackable Washer/Dryer
Front 32
OPT087
Front 32" LED TV
Stackable Washer/Dryer
OPT131
Stackable Washer/Dryer
Pace Arrow LXE 38B Specifications
Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
38B Power Bridge®
Wheelbase (inches) 252"
GVWR (lbs)1 32,400
Front GAWR (lbs)2 12,400
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 33,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
38B Power Bridge®
Overall Length (feet and inches)5 38' 7.5"
Overall Height (with A/C) (feet and inches) 12' 10"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 217
Exterior Storage (cu. ft.) 181
Patio Awning Width (feet and inches) 19' 6"
Fresh Water Holding Tank (gal) 105
Grey Water Holding Tank (gal) 75
Black Water Holding Tank (gal) 50
Appliance Propane Tank (WC) (gal)8 38.7
Water Heater Tank (gal) 10
Freightliner® XCM Series
Model Freightliner® XCM Series
Engine Cummins® ISB 6.7L
Transmission Allison® 2500 MH 6-Speed w/ Electronic Shifter
Alternator Delco Remy 160 Amp
Torque 700 lb-ft @ 1,600 RPM
Horsepower 340HP
Fuel Capacity 100 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
38K Power Bridge®
Wheelbase (inches) 252"
GVWR (lbs)1 32,400
Front GAWR (lbs)2 12,400
Rear GAWR (lbs)2 20,000
GCWR (lbs)3 33,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
38K Power Bridge®
Overall Length (feet and inches)5 38' 7.5"
Overall Height (with A/C) (feet and inches) 12' 10"
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 84"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 138
Exterior Storage (cu. ft.) 224
Patio Awning Width (feet and inches) 10' 8"
Fresh Water Holding Tank (gal) 105
Grey Water Holding Tank (gal) 75
Black Water Holding Tank (gal) 50
Appliance Propane Tank (WC) (gal)8 38.7
Water Heater Tank (gal) 10
Freightliner® XCM Series
Model Freightliner® XCM Series
Engine Cummins® ISB 6.7L
Transmission Allison® 2500 MH 6-Speed w/ Electronic Shifter
Alternator Delco Remy 160 Amp
Torque 700 lb-ft @ 1,600 RPM
Horsepower 340HP
Fuel Capacity 100 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Pace Arrow LXE Features
Interior
Exterior


There are no limits when it comes to imagining yourself living life both inside and outside of the intuitively-designed Pace Arrow LXE. From your exterior television and lit patio awning to the fine furnishings of your living area and kitchen galley, Pace Arrow offers premium electronics and appliances for all-around pride and comfort.

Interior - Throughout
Driver Convenience
Living Room
Galley
Bedroom
Bathroom
Safety/Convenience
Exterior - Throughout
Automotive
Safety/Convenience
Storage
Body Structure
Interior - Throughout
From the color of the decor to the design of the driver's seat, we've paid attention to every detail. A Fleetwood RV welcomes you from the moment you enter. We build our motor homes for comfort and convenience so you're always ready to sit back, relax and put your feet up (unless you're driving, that is). Every Fleetwood RV has a motor. But it's the special touches that make it a home.
See All Features
12" x 24" Composite Plank Style Vinyl Flooring
20,000/25,000 Btu/h Dual Furnaces (38B)
25,000/34,000 Btu/h Dual Furnaces (38K)
84" Interior Ceiling Height
Ceiling Plenum
Crown Molding
Dedicated Full-Length, Metallic A/C Ducting
Deluxe Roller Bearing, Full-Extension Drawer Guides & Transit-Ship Locks
Demand Water Pump w/Filter
Dual Roof-Mounted, High-Efficiency A/C w/Solar Panel, Chill Grills & Bedroom Heat Pump
Fan-Tastic® Power Roof Vent w/Wall Switch (Multiple Locations)
Flat Interior Ceiling
Hardwood Cabinet Doors/Drawers
Manual Day/Night Double Roller Shades
Power Passenger Chair
Solid-Surface Entry-Step w/LED Accent Lights
Tarkett Vinyle Tile (Subway Pattern)
Tuff-Pex Plumbing System
Wall Sconces (Living Area)
Wall Switches (Includes Switches for Ceiling Lights & Vents)
Water Heater 16-Gallon Output
Water Heater Bypass
Whole Coach Water Filtration System
Wood Finish Return Air Intake for Furnace
Options
CSA Package (Canadian Specs)**
Satellite Ready
Driver Convenience
In the driver's seat, you take care of both kin and cargo. We make sure you're taken care of too. With plush seating, plenty of lighting and technology at your fingertips, it might just be the best seat in the house.
See All Features
(2) 12V Power Outlets at Dash
110V Power Outlet at Dash
3-Point Seatbelts at Driver & Front Passenger Seats (w/Adjustable Shoulder Straps)
Automotive Wrap-Around Dash
Auxiliary Start Circuit
Battery Disconnect System
Color Back-Up Monitor w/Side Cameras Integrated in Mirrors
Cruise Control
Denso® High-Output Auto A/C Heater Combo
Driver/Front Passenger Soft-Touch Captain's Chairs w/Reclining Back/Slide Controls w/Power Driver Seat
Dual Dash Monitors
Easy-Access Battery Disconnect Switch
Front Power Roller Blind
Intermittent Wiper Control
Power Driver & Passenger Roller Shades/Blinds
Radio Switch Main/Auxiliary Power
Radio w/AM, FM, CD & DVD
Remote Heated Power Exterior Black Mirrors w/Turn Signals & Sideview Cameras
Soft-Touch Automotive Dash
Tilt/Telescoping Steering Wheel
Touch Screen Radio w/Built-In GPS
Living Room
Cozy furniture and convenient sofa beds make your adventures as comfortable as they are memorable. Our living rooms are a great place to slow down and unwind, even when they're in constant motion.
See All Features
42" LED HDTV (38B, 38K)
Custom Fit (by Villa®) Residential Seat Styling
Electric Fireplace (38K)
Sony 5.1 Home Theater System w/Blu-ray/DVD & Surround Sound Speakers
TV Antenna w/Signal Booster
U-Shaped Dinette/Sofa
Options
32" LED HDTV in Front Overhead
Galley
We've added everything except a personal chef. Our fully-equipped, modern galleys make sure you're always at home, home on the range - no matter what's cooking on top of it.
See All Features
19 cu. ft. Residential Refrigerator w/Two Additional Batteries & 2800 Watt Inverter
3-Burner, High-Output Cooktop w/Sealed Burners w/Cooktop Cover
Adjustable Cabinet Shelves (Select Cabinets)
GE 1 cu.ft. Convection Stainless Steel Microwave Oven w/Built-in Range Hood & Lights
Mosaic Glass/Stone Tile Back Splash
Single-Handle Galley Faucet w/Pullout Sprayer
Solid-Surface Countertop w/Sink Covers
Solid-Surface Dinette Table
Under-Galley Shelving & Wastebasket
Window Over Sink
Bedroom
Comfy beds let you sleep snugly, while built-in nooks and crannies give you space to stash your stuff. After all, what's the point of traveling if you can't get a little R and R?
See All Features
32" LED HDTV
Bedspread w/Decorative Pillows
King Dream Easy Memory Foam Mattress (38K)
Laminate Bedroom Tops
Overhead Cabinets
Plush Wall-to-Wall Carpet w/Carpet Pad in Bedroom (38B)
Queen Dream Easy Memory Foam Mattress (38B)
Remote Generator Start Switch
Wardrobe Lighting
Wardrobe w/Cedar Lining, Carpeted Floor
Options
Stackable Washer & Dryer
Bathroom
Residential-style touches and handy features make a Fleetwood RV much more comfortable than your typical campsite. With so many amenities, you might feel a little spoiled.
See All Features
A/C Venting
Cabinet Toe Kicks
Double-Handle Faucet
Glass Shower Enclosure w/Skylight & Low Threshold
Hardwood Bath Door/Trims
LED Lighting Over Sink
Mosaic Glass/Stone Tile Back Splash
Porcelain Toilet w/Water Saver
Porcelain Vacuum Flush Toilet (38S, 38K)
Safety/Convenience
With such roomy interior spaces, it's easy to forget that every Fleetwood RV is filled with safety features. They may be out of sight, but they'll give you peace of mind.
See All Features
30" Wide Entry Door
Carbon Monoxide Detector/Alarm
Central Electrical Panel
Energy Management System (EMS) w/Soft-Start
Fire Extinguisher
Multiple Seatbelt Locations
Neutral Loss Protection
Propane Detector/Alarm
Smoke Detector/Alarm
Exterior - Throughout
Our styling and exterior graphics look smart when you're on the move. And when you pull into camp to stop for the night, the exterior safety and performance features make you look even smarter.
See All Features
120V/12V AC/DC Converter
2,000-Watt Pure Sine Wave Inverter w/Remote
50-Amp Service
8.0 kW Onan® Quiet Diesel Generator
Aluminum Bus-Style Side Swing Luggage Doors
Aluminum Extruded Slide Ramps
Awning Rail/Drip Molding (Both Sides)
Doorside Patio Receptacle
Dryseal Edge Coating (Water-Wicking Wall Edge Coating)
Exterior Entertainment Center w/32" LED HDTV & High Output, Splashproof AM/FM/DVD Sound System
Fiberglass Front/Rear Caps w/High-Mounted Taillights
Fiberglass Wheel-Well Trims
Five-Point Build System
Frameless Flush Mount Windows
Full-Body Paint
Heat Pump in Bedroom A/C
Power Awning w/LED Light Strip & Wind Sensor React
Rear Ladder
Remote Keyless Entry
Seamless Beltline Trim
Tapered Slideout Box Tops & Debris Awnings
TPO Roof
Water Pump Switch (Multiple Locations)
Options
Clear Protective Front Mask
Automotive
Take detours for scenery, not service. When you're traveling, every destination matters. Our engines, chassis and automotive features make sure you get there without a hitch.
See All Features
Aluminum Wheels
Color Rear & Side-Vision Camera System
Large One-Piece Bonded-in Windshield
Mud Flaps
Single-Motor Windshield Wipers w/Wet Arm
Underhood Utility Light
Safety/Convenience
We've added more than just bells and whistles. Whether you're moving down the road or setting up camp, every Fleetwood RV is outfitted with unique exterior features to keep you safe and secure.
See All Features
20' Sewer Hose
4-Wheel ABS Brakes
Automatic Generator Start System
Automatic Hydraulic Leveling Jacks
Automotive Safety Glass
Daytime Running Lights
Easy-Sweep Flooring at Entry Step
Entry Door w/Screen Door & Deadbolt Lock
Lighted Entry Assist Handle
Power Entry Step
Rear Side Marker Lights
Six 6V/Deep-Cycle House Batteries
Toilet Tank San-T-Flush System
Touch Sensor Tank Monitoring System
Utility Compartment w/Exterior Shower
Storage
Take it all with you. With ingeniously designed storage solutions, you'll always know your luggage is safe, secure and stowed away within easy reach.
See All Features
Continuous One-Piece Compartment Seals
Lighted Compartments
Pass-Through Storage
Body Structure
Fleetwood owners build memories for a lifetime. We build our motor homes using superior construction techniques, to ensure you will keep moving for many years to come.
See All Features
Basement Storage w/LED Lighting
Heated Water & Holding Tank Compartments
Power Bridge® Chassis Construction
Powerframes Precision, Welded Aluminum Interlocking Frames
Powerlock System (Interlocking Floors, Walls, & Ceiling)
Quiet Cool Ducted A/C
Radiused & Cambered Entry Door
Raised Space Frame Foundation
Solid Bead-Foam Engineered Fit Insulation
TPO Roof
Pace Arrow LXE Interior Décor


Your invitation to design awaits. Pace Arrow offers professionally-paired interior design options to choose from, allowing you to tailor your unique tastes to the comfortable feeling of "Welcome Home."

Spiced Java
Spiced JavaSofa
Spiced JavaAccent
Spiced JavaBedspread
Spiced JavaCountertop
Spiced JavaFlooring
Spiced JavaCarpet
Aztec Quartz
Aztec QuartzSofa
Aztec QuartzAccent
Aztec QuartzBedspread
Aztec QuartzCountertop
Aztec QuartzFlooring
Aztec QuartzCarpet
Wood Cabinetry
BarcelonaBarcelona
ButternutButternut
Click on any decor or cabinetry choice to see it larger.
Spiced Java

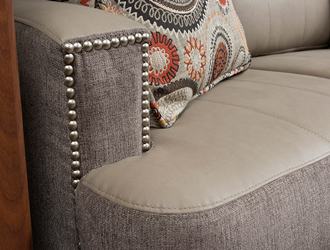

Spiced JavaSofa
Spiced JavaAccent
Spiced JavaBedspread
Spiced JavaCountertop
Spiced JavaFlooring
Spiced JavaCarpet
Aztec Quartz
Aztec QuartzSofa
Aztec QuartzAccent
Aztec QuartzBedspread
Aztec QuartzCountertop
Aztec QuartzFlooring
Aztec QuartzCarpet
Barcelona Barcelona
Butternut Butternut
Colors are representations of actual samples and may be limited by standard display technology.
Please consult your dealer before making a purchase decision.
Pace Arrow LXE Construction

21st-century Advanced Motorhome Construction

Fleetwood RV employs 21st century construction materials and techniques when manufacturing its motorhomes to provide the latest in durability and safety. We call it the F-21 Advantage, an industry-leading approach to motorhome engineering, manufacturing and materials that exceeds the standard. F-21 is demonstrated by 21 key proof points shared throughout all Fleetwood product classes, some of which are shown here.

Proof
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
×

1. True bus-style cargo doors (N/A Class C)

Instead of “bargain-basement” doors with exposed seals and hinges, Fleetwood uses a more durable design like the doors in a luxury motorcoach, far exceeding industry standards.
×

2. Vacu-bond™ integrated walls

Fully sealed and insulated, these weather-resistant, vacuum-bonded assemblies combine 21st-century materials and construction for a straight and flat integrated wall that’s better suited to withstand the rigors of the road. An adhesive bonding process applies up to 415,000 pounds of vacuum pressure to the welded-aluminum sidewall frame, bead-foam panel insulation, thick Tuff Coat fiberglass skin and inner wall materials for over 30 minutes, far exceeding industry standards.
×

3. Premium full-body paint

Instead of the industry-standard gelcoat and vinyl, the Fleetwood standard offers full-painted exteriors—as on premium motorcoaches. Painted and clear-coated in a state-of-the-art facility, this finish has superior UV protection for finish longevity and higher resale value.
×

4. Dedicated full-length, metallic A/C ducting

Instead of cut-out foam channels, the Fleetwood standard provides insulated A/C ducting running the length of the coach with carefully placed outlets for cool comfort throughout.
×

5. Automatic Hydraulic Leveling Jacks

Industry standard electric leveling jacks are known to succumb to debris and water damage. That’s why reliable high-strength hydraulic jacks are used—to meet the Fleetwood standard.
×

7. Radiused and cambered entry door

The industry standard is to provide a flat door that can allow wind noise, so we use a higher-end solution that latches more securely and seals tighter.
×

8. Raised space frame foundation

Where other manufacturers set their floor on the frame, Fleetwood builds an elevated stand-off steel-welded frame with integrated framework, engineered for a stronger, more durable structure and true alignment that greatly expands basement storage. The Power Bridge® can be found on Fleetwood Class A Diesel models, Power Platform™ on the Class A Gas and the Elevated Capacity Bridge™ can be found on Class C models.
×

9. PowerLock System™ (Interlocking floors, walls, ceiling)

Fleetwood’s interlocking aluminum extrusion wall-joint system integrates floor, sidewall and roof assembly into one locked-together overall structure for long-term performance and durability.
×

10. CARE-Checks™ (QC line checks)

Taking cues from the automotive industry, Fleetwood enlists numerous quality inspectors in a CARE QC line. Each person is specialized in a specific discipline such as cabinets, doors or paint, instead of the industry standard, “one-person-checks-all” approach.
×

11. PowerFrames™ (Precision, welded aluminum interlocking frames)

No “hammer-to-fit,” stick-and-frame construction here. We engineer and build our wall, floor and roof frames on jigs to precise tolerances, with strong, modern materials and techniques, joined with interlocking extrusions (PowerLock System™) to fit precisely when mated with the steel-reinforced bridge structure.
×

12. Flat interior ceiling

An arched aluminum frame roof and flat ceiling design creates a strong, durable structure that provides a full 5” of insulation at the roof peak—right where the A/C ducts run, to insulate them from heat and provide maximum cabin insulation.
×

13. Tapered slideout box tops & debris awnings

Some slideout boxes incorporate a tapered roofline that sheds water away from the body to provide an additional level of moisture protection in addition to multiple bead-seals and the debris awning protection.
×

14. Rotocast molded storage boxes

Instead of industry-standard plywood (or worse), these molded boxes are extremely durable, look great and can be washed out with a hose.
×

15. Tuff-Pex™ plumbing system

It is a complete system of flexible and durable Oetiker® tubing, fittings and stainless steel rings, all with sub-zero ratings. With some extra thinking added in production we make it simpler to service by using red for hot and blue for cold.
×

16. Seamless beltline trim

Elegantly sheds water and divides the sidewall and storage doors with an attractive and functional enhancement.
×

17. Solid bead-foam Engineered Fit Insulation™

Fleetwood above-standard insulation material and process doesn’t allow settling or air gaps to form as with roll-type fiberglass used in industry-standard units.
×

18. Tuff-Roof™ low-maintenance roof system

The armor skin of the arched aluminum frame roof is extremely durable and long-lasting, yet easily repaired if damaged. Most Fleetwood models feature a lightweight and flexible TPO skin, with some offering a molded fiberglass skin; either option is low-maintenance and guaranteed for durability.
×

19. DrySeal™ Edge Coating (water-wicking wall edge coating)

Applied to every perimeter edge of the walls and window openings, the coating seals out moisture to inhibit delamination, swelling and mold problems for long-lasting durability.
×

20. Aluminum extruded slide ramps

The industry standard is pine wood ramps that can absorb moisture, crack, distort and rot. The Fleetwood standard demands these be made of modern materials to stay straight and last for years of trouble-free operation.
×

21. Five-point build system™

Fleetwood uses a five-point build system in its manufacturing process to ensure greater durability. The system is comprised of an engineered, jig-built steel structure bridge; precision jig-built, welded aluminum framing; vacu-bonded walls; interlocking ceiling wall and floor joints; and durable weather-resistant materials and coatings.
Learn more about the
F-21 Advantage »
