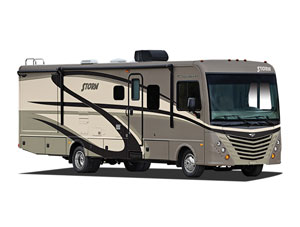

2016 Storm
The Storm gives you the best of both worlds—the size efficiency of a Class C with the amenities of a Class A motorhome.
The Manufacturer's Suggested Retail Price is in US Dollars and excludes destination freight charge, tax, title, license, dealer fees and optional equipment. CLOSE
$102,620
*
MSRP
UP TO 362 HP

FLOOR PLANS 28MS, 30L, 32H, 32V, 35SK
SLEEPS 7
BROCHURE FIND A DEALER
Blushing Bronze
Platinum Onyx
Stratosphere

1 / 9
Storm 32V shown in Blushing Bronze Décor with Butternut wood cabinetry
Storm Floor Plans
Floor Plans
Why Buy


A variety of floor plans for the Storm lets you choose the layout that fits your needs and lifestyle.
28MS
Storm 28MS
Length: 28' 8"
Storm 30L
Length: 29' 11"

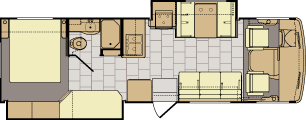

Storm 32H
Length: 31'

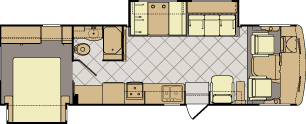

Storm 32V
Length: 32' 9"

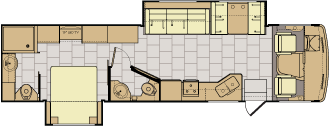

Storm 35SK
Length: 36' 2"
Affordable
Configurable
Hide-a-Loft
Universal
More Bang For Your Buck

Storm is an affordably priced, spacious and family-friendly Class A Gas.

Storm 28MS Floor Plan Options

There aren't any options currently available for this floor plan.

Facing Dinette
OPT830
Facing Dinette
Bunk Area 19
OPT097
Bunk Area 19" LED TV
Dual Panel TVs
OPT157
Dual Panel TVs
Dinette W/Swing Down Bunk 30
OPT860 OPT864
Dinette W/Swing Down Bunk 30" x 70" Dinette / 28" x 70" Bunk

There aren't any options currently available for this floor plan.

Electric Fireplace
OPT139
Electric Fireplace
Residential Refrigerator
OPT144
Residential Refrigerator
Sofa-L Transformer Ultraleather w/Jack-Knife Sleeper
OPT191
Sofa-L Transformer Ultraleather w/Jack-Knife Sleeper
Storm 28MS Specifications
Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
28MS Ford®
Wheelbase (inches) 178"
GVWR (lbs)1 18,000
Front GAWR (lbs)2 7,000
Rear GAWR (lbs)2 12,000
GCWR (lbs)3 23,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
28MS Ford®
Overall Length (feet and inches)5 28' 8"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 125
Exterior Storage (cu. ft.) 132
Patio Awning Width (feet and inches) 18'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
30L Ford®
Wheelbase (inches) 178"
GVWR (lbs)1 18,000
Front GAWR (lbs)2 7,000
Rear GAWR (lbs)2 12,000
GCWR (lbs)3 23,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
30L Ford®
Overall Length (feet and inches)5 29' 11"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 132
Exterior Storage (cu. ft.) 185
Patio Awning Width (feet and inches) 14'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
32H Ford®
Wheelbase (inches) 190"
GVWR (lbs)1 18,000
Front GAWR (lbs)2 7,000
Rear GAWR (lbs)2 12,000
GCWR (lbs)3 23,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
32H Ford®
Overall Length (feet and inches)5 31'
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 116
Exterior Storage (cu. ft.) 104
Patio Awning Width (feet and inches) 11' 6"
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
32V Ford®
Wheelbase (inches) 208"
GVWR (lbs)1 18,000
Front GAWR (lbs)2 7,000
Rear GAWR (lbs)2 12,000
GCWR (lbs)3 23,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
32V Ford®
Overall Length (feet and inches)5 32' 9"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 128
Exterior Storage (cu. ft.) 192
Patio Awning Width (feet and inches) 18'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 37
Black Water Holding Tank (gal) 37
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
35SK Ford®
Wheelbase (inches) 228"
GVWR (lbs)1 22,000
Front GAWR (lbs)2 8,000
Rear GAWR (lbs)2 15,000
GCWR (lbs)3 26,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
35SK Ford®
Overall Length (feet and inches)5 36' 2"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 74
Exterior Storage (cu. ft.) 127
Patio Awning Width (feet and inches) 18'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 37
Black Water Holding Tank (gal) 37
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Storm Features
Interior
Exterior


Every detail of the Storm is specifically designed to provide superior functionality, convenience and comfort.

Interior - Throughout
Driver Convenience
Living Room
Galley
Bedroom
Bathroom
Exterior - Throughout
Storage
Body Structure
Interior - Throughout
From the color of the decor to the design of the driver's seat, we've paid attention to every detail. A Fleetwood RV welcomes you from the moment you enter. We build our motor homes for comfort and convenience so you're always ready to sit back, relax and put your feet up (unless you're driving, that is). Every Fleetwood RV has a motor. But it's the special touches that make it a home.
See All Features
(2) 15,000 Btu/h Ducted Air Conditioner w/Chill Grill (35SK)
(2) 20,000 Btu/h Furnace (32H)
12V Water Pump, Demand Operation
30,000 Btu/h Furnace, Wall Mounted Thermostat (28MS, 30L, 32V)
34,000Btu/h Single Furnace (35SK)
6 Gallon Propane Water Heater w/Electronic Ignition
AC/DC Load Center w/12V Converter/Battery Charger
Auxiliary Batteries w/Disconnect Switch
Central Monitor Panel
Composite Tile Flooring Living/Galley & Carpet Bedroom (28MS, 32H, 32V)
Composite Tile Flooring Throughout (30L, 35SK)
Dedicated Full-Length, Metallic A/C Ducting
Deluxe Roller Bearing, Full Extension Drawer Guides & Transit-Ship Locks
Flat Interior Ceiling
Furniture by Flexsteel®
GFI Circuit Protection
Hidden Cabinet Door & Euro Hinges
Hide-A-Loft Drop Down Queen Bed w/TV (28MS, 30L, 32H, 32V)
Ozite Lined Shelves in Overhead Cabinets
Pleated Night Shades in Living Room & Bedroom
Soft-Touch Vinyl Ceiling w/Ducted Air
Tuff-Pex Plumbing System
Water Heater Bypass Valve Fresh Water System Winterization
Water Pump w/On/Off Switches at Galley & Lavy
Options
Bunk Area 19" LED TV (32H)
Bunk Bed-n-Breakfast w/Dual Pane Windows (32H)
CSA Package (Canadian Specs)**
Dual Flat Panel Video Monitors (32H) for Bunk Area
Electric Fireplace (35SK)
Satellite Radio (Subscription Required)
Driver Convenience
In the driver's seat, you take care of both kin and cargo. We make sure you're taken care of too. With plush seating, plenty of lighting and technology at your fingertips, it might just be the best seat in the house.
See All Features
(2) 12V Power Outlets at Dash
3 Point Seat Belts at Driver & Front Passenger Seats
Auxiliary Emergency Start Assist Switch on Dash
Cruise Control
Driver/Passenger Reading Lights & Magazine Rack
In-Dash AM/FM/Radio w/CD Player
Intense Halogen Projector Headlamps
Power Heated Remote Mirrors
Radio Switch Main/Auxiliary Power
Rear Vision Camera
Side-View Camera Package
Soft Touch Flexsteel® Driver/Passenger Captain's Chair w/Reclining Back/Slide Controls
Tilt Wheel
Living Room
Cozy furniture and convenient sofa beds make your adventures as comfortable as they are memorable. Our living rooms are a great place to slow down and unwind, even when they're in constant motion.
See All Features
28" LED Wide-Screen TV w/Remote & DVD Player (28MS, 32H)
32" Swing-Arm LED Wide-Screen TV w/Remote & DVD Player (30L)
39" LED Wide-Screen TV w/Remote & DVD Player (32V, 35SK)
Ceiling Lights w/Wall Switches (Entry & Bath)
Dream Dinette Table w/2 Cup Holders, Convertible for Sleeping (30L)
Soft Touch Sofa Bed (30L, 32H, 32V, 35SK)
Options
Expandable L-Sofa (35SK)
Facing Booth Dinette (30L)
Home Theatre Sound (30L, 32V, 35SK)
Galley
We've added everything except a personal chef. Our fully-equipped, modern galleys make sure you're always at home, home on the range - no matter what's cooking on top of it.
See All Features
3 Burner Range w/High Output/Piezo Igniter & Oven w/Cooktop Cover
Ceiling Power Vent Fan
Dometic 8 cu. ft. Refrigerator/Freezer (35SK)
Dometic® 6 cu. ft. Refrigerator/Freezer
Laminate Countertops w/ Bull Nose T-Molding Edge
Microwave Oven w/Electronic Touch Pad
Raised Panel Refrigerator Inserts
Range Hood w/Light & Fan
Residential Size Double Bowl Sink
Solid Surface Countertop - Galley Only (35SK)
Whole Coach Water Filtration System
Options
Residential Refrigerator w/upgraded battery & inverter package (35SK)
Bedroom
Comfy beds let you sleep snugly, while built-in nooks and crannies give you space to stash your stuff. After all, what's the point of traveling if you can't get a little R and R?
See All Features
Bedroom 19" LED TV
Bedspread w/Decorative Pillows
Queen Bed w/ Mattress
Reading Lights in Bed Overhead Cabinet
Bathroom
Residential-style touches and handy features make a Fleetwood RV much more comfortable than your typical campsite. With so many amenities, you might feel a little spoiled.
See All Features
10 lb. ABC Fire Extinguisher
Bath Door w/Residential Passage Lock
Carbon Monoxide Detector/Alarm
China Bowl Toilet w/Hand Sprayer
Egress Window
Exterior & Interior Entry Assist Handle
Glass Shower Door
Medicine Cabinet w/Wood Construction
Molded ABS Shower w/Surround
Multiple Seatbelt Locations
Propane Detector/Alarm
Residential Style Faucet w/Large Sink
Safety/Convenience
Shower Head w/Flexible Hose Extension
Skylight/Roof Vent w/12V Fan
Smoke Detector/Alarm
Exterior - Throughout
Our styling and exterior graphics look smart when you're on the move. And when you pull into camp to stop for the night, the exterior safety and performance features make you look even smarter.
See All Features
Aluminum Bus-Style Side Swing Luggage Doors
Debris Awning Above All Slide-Out Rooms
Dryseal Edge Coating (Water-Wicking Wall Edge Coating)
Dual 6V Deep Cycle Auxiliary Batteries
Exterior Entertainment Center w/24" TV, AM/FM/CD Player, Coax Cable and 120 volt Receptacle
Five-Point Build System
Full-Body Paint
High Gloss Smooth Fiberglass Exterior
Large 1" (Inside Diameter) Water Tank Drain
Onan 5.5kW MicroQuiet Generator (35SK)
Onan® 4.0kW MicroQuiet Generator
Patio Awning
Power Awning w/LED Lighting
Rear Ladder
Seamless Beltline Trim
Sewer Hose Storage in Bumper
Stainless Steel Wheel Simulators
Tapered Slideout Box Tops & Debris Awnings
Tinted Frameless Dual-Pane Windows
Toilet Tank San-T-Flush System
Trailer Hitch w/7 Pin Electrical Hook-Up1
Tuff-Roof Low-Maintenance Roof System
Valve Stem Extenders
Wash Unit w/Faucet, Flexible Shower Hose
Options
30 Amp Electrical Service & 30' Power Cord
50 Amp Electrical Service & 50' Power Cord w/1200W Inverter (35SK)
AC Duplex GFI Receptacle on Patio Side
Amber Porch Light w/Interior Switch
Automatic Hydraulic Leveling Jacks
Automotive Safety Glass
Dual Glazed Windows
Entry Door w/Screen Door & Deadbolt Lock
High Mounted Large Taillights
Power Electric Step
Protective Front Mask
Radius Tinted Windows
Safety/Convenience
Storage
Take it all with you. With ingeniously designed storage solutions, you'll always know your luggage is safe, secure and stowed away within easy reach.
See All Features
Molded Cross Link Polyethylene Battery Compartment w/Lid
Pass Through Storage
Rotocast Molded Storage Boxes
Slam Latch Luggage Doors
Body Structure
Fleetwood owners build memories for a lifetime. We build our motor homes using superior construction techniques, to ensure you will keep moving for many years to come.
See All Features
Corrosion Resistant Aluminum Tube Hull Framing
F-21 Construction & Manufacturing Technology
Ford 22,000lb Chassis w/362HP V10 (35SK)
Ford® 18,000lb Chassis w/362HPV10
Powerframes Precision Welding w/5-Point Build System
Powerlock System w/Interlocking Walls & Ceiling
Radiused & Cambered Entry Door
Raised Space Frame Foundation
Solid Bead-Foam Engineered Fit Insulation
Vacu-Bond Integrated Walls
Storm Interior Décor


With a variety of interior décor options, you can truly make the Storm your own unique creation.

Blushing Bronze
Blushing BronzeSofa
Blushing BronzeAccent
Blushing BronzeBedspread
Blushing BronzeCountertop
Blushing BronzeFlooring
Blushing BronzeCarpet
Stratosphere
StratosphereSofa
StratosphereAccent
StratosphereBedspread
StratosphereCountertop
StratosphereFlooring
StratosphereCarpet
Wood Cabinetry
BarcelonaBarcelona
ButternutButternut
Click on any decor or cabinetry choice to see it larger.
Blushing Bronze
Blushing BronzeSofa
Blushing BronzeAccent
Blushing BronzeBedspread
Blushing BronzeCountertop
Blushing BronzeFlooring
Blushing BronzeCarpet
Stratosphere
StratosphereSofa
StratosphereAccent
StratosphereBedspread
StratosphereCountertop
StratosphereFlooring
StratosphereCarpet
Barcelona Barcelona
Butternut Butternut
Colors are representations of actual samples and may be limited by standard display technology.
Please consult your dealer before making a purchase decision.
Storm Construction

21st-century Advanced Motorhome Construction

Fleetwood RV employs 21st century construction materials and techniques when manufacturing its motorhomes to provide the latest in durability and safety. We call it the F-21 Advantage, an industry-leading approach to motorhome engineering, manufacturing and materials that exceeds the standard. F-21 is demonstrated by 21 key proof points shared throughout all Fleetwood product classes, some of which are shown here.

Proof
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
×

1. True bus-style cargo doors (N/A Class C)

Instead of “bargain-basement” doors with exposed seals and hinges, Fleetwood uses a more durable design like the doors in a luxury motorcoach, far exceeding industry standards.
×

2. Vacu-bond™ integrated walls

Fully sealed and insulated, these weather-resistant, vacuum-bonded assemblies combine 21st-century materials and construction for a straight and flat integrated wall that’s better suited to withstand the rigors of the road. An adhesive bonding process applies up to 415,000 pounds of vacuum pressure to the welded-aluminum sidewall frame, bead-foam panel insulation, thick Tuff Coat fiberglass skin and inner wall materials for over 30 minutes, far exceeding industry standards.
×

3. Premium full-body paint

Instead of the industry-standard gelcoat and vinyl, the Fleetwood standard offers full-painted exteriors—as on premium motorcoaches. Painted and clear-coated in a state-of-the-art facility, this finish has superior UV protection for finish longevity and higher resale value.
×

4. Dedicated full-length, metallic A/C ducting

Instead of cut-out foam channels, the Fleetwood standard provides insulated A/C ducting running the length of the coach with carefully placed outlets for cool comfort throughout.
×

5. Automatic Hydraulic Leveling Jacks

Industry standard electric leveling jacks are known to succumb to debris and water damage. That’s why reliable high-strength hydraulic jacks are used—to meet the Fleetwood standard.
×

6. Hide-A-Loft™ bed system

With a capacity that is hundreds of pounds above industry standard, Hide-A-Loft is better than “good enough.” Fleetwood has you resting on higher standards with reliable innovations.
×

7. Radiused and cambered entry door

The industry standard is to provide a flat door that can allow wind noise, so we use a higher-end solution that latches more securely and seals tighter.
×

8. Raised space frame foundation

Where other manufacturers set their floor on the frame, Fleetwood builds an elevated stand-off steel-welded frame with integrated framework, engineered for a stronger, more durable structure and true alignment that greatly expands basement storage. The Power Bridge® can be found on Fleetwood Class A Diesel models, Power Platform™ on the Class A Gas and the Elevated Capacity Bridge™ can be found on Class C models.
×

9. PowerLock System™ (Interlocking walls, ceiling)

Fleetwood’s interlocking aluminum extrusion wall-joint system integrates sidewall and roof assembly into one locked-together overall structure for long-term performance and durability.
×

10. CARE-Checks™ (QC line checks)

Taking cues from the automotive industry, Fleetwood enlists numerous quality inspectors in a CARE QC line. Each person is specialized in a specific discipline such as cabinets, doors or paint, instead of the industry standard, “one-person-checks-all” approach.
×

11. PowerFrames™ (Precision, welded aluminum interlocking frames)

No “hammer-to-fit,” stick-and-frame construction here. We engineer and build our wall, floor and roof frames on jigs to precise tolerances, with strong, modern materials and techniques, joined with interlocking extrusions (PowerLock System™) to fit precisely when mated with the steel-reinforced bridge structure.
×

12. Flat interior ceiling

An arched aluminum frame roof and flat ceiling design creates a strong, durable structure that provides a full 5” of insulation at the roof peak—right where the A/C ducts run, to insulate them from heat and provide maximum cabin insulation.
×

13. Tapered slideout box tops & debris awnings

Some slideout boxes incorporate a tapered roofline that sheds water away from the body to provide an additional level of moisture protection in addition to multiple bead-seals and the debris awning protection.
×

14. Rotocast molded storage boxes

Instead of industry-standard plywood (or worse), these molded boxes are extremely durable, look great and can be washed out with a hose.
×

15. Tuff-Pex™ plumbing system

It is a complete system of flexible and durable Oetiker® tubing, fittings and stainless steel rings, all with sub-zero ratings. With some extra thinking added in production we make it simpler to service by using red for hot and blue for cold.
×

16. Seamless beltline trim

Elegantly sheds water and divides the sidewall and storage doors with an attractive and functional enhancement.
×

17. Solid bead-foam Engineered Fit Insulation™

Fleetwood above-standard insulation material and process doesn’t allow settling or air gaps to form as with roll-type fiberglass used in industry-standard units.
×

18. Tuff-Roof™ low-maintenance roof system

The armor skin of the arched aluminum frame roof is extremely durable and long-lasting, yet easily repaired if damaged. Most Fleetwood models feature a lightweight and flexible TPO skin, with some offering a molded fiberglass skin; either option is low-maintenance and guaranteed for durability.
×

19. DrySeal™ Edge Coating (water-wicking wall edge coating)

Applied to every perimeter edge of the walls and window openings, the coating seals out moisture to inhibit delamination, swelling and mold problems for long-lasting durability.
×

20. Aluminum extruded slide ramps

The industry standard is pine wood ramps that can absorb moisture, crack, distort and rot. The Fleetwood standard demands these be made of modern materials to stay straight and last for years of trouble-free operation.
Learn more about the
F-21 Advantage »
