2016 Terra
Not too big, not too small. The Terra is just right for fun adventures both near and far.
The Manufacturer's Suggested Retail Price is in US Dollars and excludes destination freight charge, tax, title, license, dealer fees and optional equipment. CLOSE
$106,645
*
MSRP
UP TO 362 HP

FLOOR PLANS 31TS, 35K
SLEEPS 6
BROCHURE FIND A DEALER
Natural Taupe
Stately Sterling
Standard

1 / 6

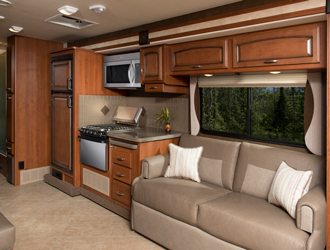

Terra 31TS shown in Natural Taupe décor with Spice wood Cabinetry
Terra Floor Plans
Floor Plans
Why Buy


The Terra offers ultimate livability with floor plans that have what you need where you want it.
31TS

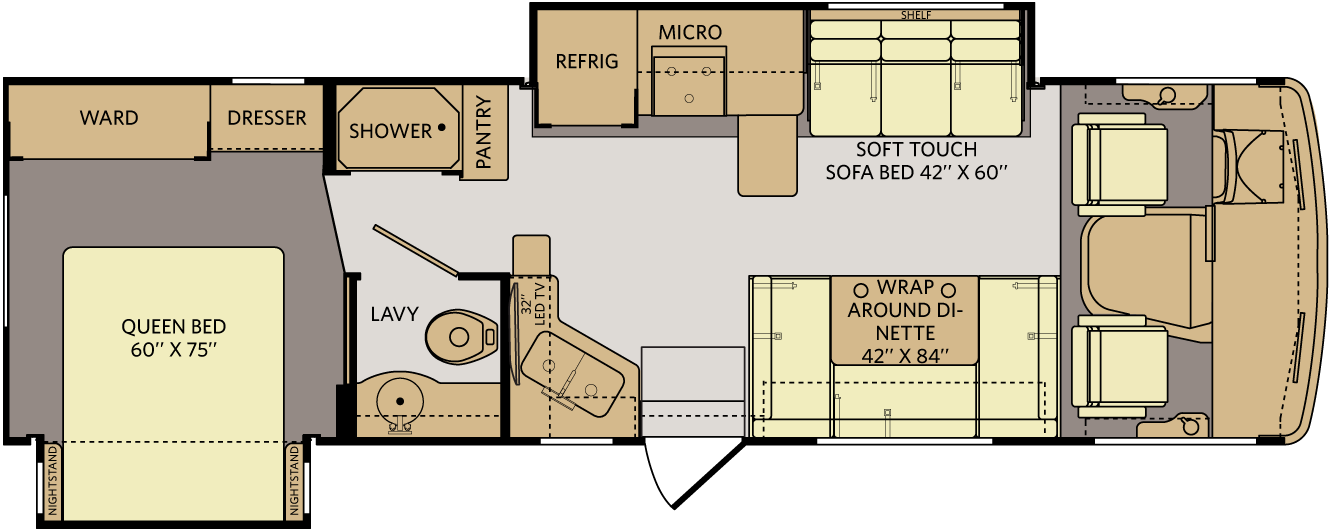

Terra 31TS
Length: 31' 2"
Terra 35K
Length: 36' 2"
Controlled
Promising
Sleek
Heavy-Weight
A Chilling Effect

For increased comfort and a more consistent room temperature throughout, Terra is designed with 15,000 Btu Dual-ducted air conditioners with chill grills.

Terra 31TS Floor Plan Options
19
OPT084-31TS
19" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
Convection Microwave
OPT121
Convection Microwave
Hide-A-Loft Drop Down Queen Bed 60
OPT217
Hide-A-Loft Drop Down Queen Bed 60" x 80"
32
OPT351
32" LED TV Entertainment Center
28
OPT084-35K
28" LED TV
Exterior Entertainment Center
OPT093
Exterior Entertainment Center
Convection Microwave
OPT121
Convection Microwave
Expandable L-Sofa
OPT191
Expandable L-Sofa
Hide-A-Loft Drop Down Queen Bed 60
OPT217
Hide-A-Loft Drop Down Queen Bed 60" x 80"
Terra 31TS Specifications
Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
31TS Ford®
Wheelbase (inches) 208"
GVWR (lbs)1 22,000
Front GAWR (lbs)2 8,000
Rear GAWR (lbs)2 15,000
GCWR (lbs)3 26,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
31TS Ford®
Overall Length (feet and inches)5 31' 2"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 136
Exterior Storage (cu. ft.) 102
Patio Awning Width (feet and inches) 16'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 35
Black Water Holding Tank (gal) 35
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Weights & Measurements
Dimensions & Capacities
Chassis
Footnotes
35K Ford®
Wheelbase (inches) 228"
GVWR (lbs)1 22,000
Front GAWR (lbs)2 8,000
Rear GAWR (lbs)2 15,000
GCWR (lbs)3 26,000
Hitch Rating Weight (lbs)4 5,000
Tongue Weight (lbs)4 500
35K Ford®
Overall Length (feet and inches)5 36' 2"
Overall Height (with A/C) (feet and inches) 12'
Overall Width (maximum) (inches)6,7 102"
Interior Height (maximum) (inches) 82"
Interior Width (maximum) (inches) 96"
Interior Storage (cu. ft.) 74
Exterior Storage (cu. ft.) 127
Patio Awning Width (feet and inches) 18'
Fresh Water Holding Tank (gal) 60
Grey Water Holding Tank (gal) 37
Black Water Holding Tank (gal) 37
Appliance Propane Tank (WC) (gal)8 14
Water Heater Tank (gal) 6
Ford®
Model Ford®
Engine 6.8L Triton V10
Transmission Ford® 5-Speed, Automatic w/Overdrive
Alternator 175 Amp
Torque 457 lb-ft @ 3250 RPM
Horsepower 362HP
Fuel Capacity 80 gal.

1 GVWR (Gross Vehicle Weight Rating) is the maximum permissible weight of this fully loaded motorhome. The GVWR is equal to or greater than the sum of the (UVW) unloaded vehicle weight plus the (OCCC) occupant cargo-carrying capacity. UVW and OCCC are found on the label containing the federal certification tag in each RV.

2 GAWR (Gross Axle Weight Rating) is the maximum permissible loaded weight a specific axle is designed to carry.

3 GCWR (Gross Combined Weight Rating) is the value specified by the motorhome manufacturer as the maximum allowable loaded weight of this motorhome with its towed vehicle. Towing and braking capacities may be different. Refer to Fleetwood and chassis manufacturer's manuals for complete information.

4 The chassis manufacturer recommends the installation of a supplemental brake control system to activate the brakes on the vehicle or trailer you are towing. Hitch receiver ratings expressed are maximum for the hitch receiver installed and may require the purchase of additional equipment that is dependent on the weight of the towed load. Consult with hitch receiver manufacturer for further information.

5 Length measured from front bumper to rear bumper (excludes accessories).

6 Excludes safety equipment and awnings.

7 Motorhomes feature a body width over 96" which will restrict your access to certain roads. Before purchasing, you should research any state and/or province road laws which may affect your usage.

8 Tank manufacturer's listed water capacity (WC). Actual propane capacity is 80% of water listing as required by the safety code.

Terra Features
Interior
Exterior


Terra has all the comfort and convenience features you need to make every journey a perfect one.

Interior - Throughout
Driver Convenience
Living Room
Galley
Bedroom
Bathroom
Safety/Convenience
Exterior - Throughout
Safety/Convenience
Storage
Body Structure
Interior - Throughout
From the color of the decor to the design of the driver's seat, we've paid attention to every detail. A Fleetwood RV welcomes you from the moment you enter. We build our motor homes for comfort and convenience so you're always ready to sit back, relax and put your feet up (unless you're driving, that is). Every Fleetwood RV has a motor. But it's the special touches that make it a home.
See All Features
12V Water Pump, Demand Operation
6 Gallon Propane Water Heater w/Electronic Ignition
AC/DC Load Center w/12V Converter/Battery Charger
Auxiliary Battery w/Disconnect Switch
Central Monitor Panel
Complete PEX Plumbing System
Deluxe Roller Bearing, Full Extension Drawer Guides & Transit-Ship Locks
Dual 15,000 Btu Ducted Air Conditioner w/Chill Grill
Dual 20,000 BTU Furnaces (31TS)
GFI Circuit Protection
Hardwood Raised Panel Cabinet Doors
Hidden Cabinet Door Hinges
Ozite Lined Shelves in Overhead Cabinets
Pleated Day/Night Shades in Living Room & Bedroom
Quality Constructed Furniture by Villa® (Comfort Fit)
Single 34,000 BTU Furnace (35K)
Soft Touch Ceilings
Vinyl Tile Flooring Throughout (Except Bedroom and Slideout Applications)
Water Heater Bypass Valve Fresh Water System
Water Pump with On/Off Switches at Galley & Lavy
Options
19" Bedroom LED TV
Convection Microwave
Dual 15,000 Btu A/C's w/Heat Pump
Hide-A-Loft Queen Bed
Home Entertainment Center
Satellite Radio
Driver Convenience
In the driver's seat, you take care of both kin and cargo. We make sure you're taken care of too. With plush seating, plenty of lighting and technology at your fingertips, it might just be the best seat in the house.
See All Features
12V Power Jack
3 Point Seat Belts at Driver & Front Passenger Seats
Auxiliary Emergency Start Assist Switch on Dash
Cruise Control
In-Dash AM/FM/Radio w/CD Player
Manual Roller Sun Visors
Power Heated Remote Mirrors
Radio Switch Main/Auxiliary Power
Rear Vision Camera w/Integrated Radio/In-Dash Monitor
Soft Touch Villa® (Comfort Fit) Driver/Passenger Captain's Chair w/Reclining Back/Slide Controls
Tilt Wheel
Living Room
Cozy furniture and convenient sofa beds make your adventures as comfortable as they are memorable. Our living rooms are a great place to slow down and unwind, even when they're in constant motion.
See All Features
32" LED TV w/DVD Player (31TS)
39" LED TV w/DVD Player (35K)
Ceiling Lights w/Wall Switches (Entry & Bath)
Day/Night Pleated Shades
Pedestal Sofa Table w/Locking Legs (Select Models)
Soft Touch Sofa Bed (Select Models)
Galley
We've added everything except a personal chef. Our fully-equipped, modern galleys make sure you're always at home, home on the range - no matter what's cooking on top of it.
See All Features
3 Burner Range w/High Output/Piezo Igniter & Oven
Backsplash at Galley Area
Cooktop Cover
Dometic® 8 cu. ft. Refrigerator/Freezer
Microwave Oven w/Electronic Touch Pad
Power Roof Fan-Tastic® Vent Fan
Raised Panel Refrigerator Inserts
Residential Size Double Bowl Sink
Solid Surface Countertops
Whole Coach Water Filtration System
Bedroom
Comfy beds let you sleep snugly, while built-in nooks and crannies give you space to stash your stuff. After all, what's the point of traveling if you can't get a little R and R?
See All Features
Bedspread w/Reverse Pillow Shams
Queen Bed
Reading Lights in Bed Overhead Cabinet
Wall Space for TV w/AC Receptacle & Cable Jack
Bathroom
Residential-style touches and handy features make a Fleetwood RV much more comfortable than your typical campsite. With so many amenities, you might feel a little spoiled.
See All Features
Bath Door w/Residential Passage Lock
China Bowl Toilet w/Hand Sprayer
Glass Shower Door Enclosure
Laminate Countertops w/Solid Surface Edge
Medicine Cabinet w/Wood Construction
Molded ABS Shower/Tub
Residential Style Faucet
Shower Head w/Flexible Hose Extension
Skylight/Roof Vent w/12V Fan
Stainless Steel Sink
Safety/Convenience
With such roomy interior spaces, it's easy to forget that every Fleetwood RV is filled with safety features. They may be out of sight, but they'll give you peace of mind.
See All Features
10 ABC Fire Extinguisher
Carbon Monoxide Detector/Alarm
Exterior & Interior Entry Assist Handle
Multiple Seatbelt Locations
Propane Detector/Alarm
Smoke Detector/Alarm
Exterior - Throughout
Our styling and exterior graphics look smart when you're on the move. And when you pull into camp to stop for the night, the exterior safety and performance features make you look even smarter.
See All Features
Debris Awning Above All Slide-Out Rooms
Dual 6V Deep Cycle Auxiliary Batteries
High Gloss Smooth Fiberglass Exterior
Hydraulic Leveling Jacks
Large 1" (Inside Diameter) Water Tank Drain
Molded Wheel Trim Flares
Onan® 5.5KW EFI Generator
Outstanding Exterior Graphics and Styling
Patio Awning
Power Electric Step
Stainless Steel Wheel Simulators
Toilet Tank San-T-Flush(TM) System
Trailer Hitch w/7 Pin Electrical Hook-Up1
Wash Unit w/Faucet, Flexible Shower Hose
Options
Clear Protective Front Mask
Dual Pane Windows
Electric Patio Awning
Exterior Entertainment Center with AM/FM/CD Player, Coax Cable and 120 volt Receptacle
Full Body Paint
Rear Ladder
Safety/Convenience
We've added more than just bells and whistles. Whether you're moving down the road or setting up camp, every Fleetwood RV is outfitted with unique exterior features to keep you safe and secure.
See All Features
30 Amp, 30' Power Cord, Compartment Storage
AC Duplex GFI Receptacle on Patio Side
Amber Porch Light w/Interior Switch
Automotive Safety Glass
Entry Door w/Screen Door & Deadbolt Lock
High Mounted Large Taillights
Power Electric Step
Power/Heated Rear View Mirrors
Radius Tinted Windows
Rear Vision Camera w/Integrated Radio/In-Dash Monitor
Storage
Take it all with you. With ingeniously designed storage solutions, you'll always know your luggage is safe, secure and stowed away within easy reach.
See All Features
Full Basement Exterior
Molded Cross Link Polyethylene Battery Compartment w/lid
Pass Through Storage
Roto-Molded Polyethylene Luggage Compartments
Slam Latch Luggage Doors
Body Structure
Fleetwood owners build memories for a lifetime. We build our motor homes using superior construction techniques, to ensure you will keep moving for many years to come.
See All Features
26" Wide Radius Corner Entry Door w/Obscured Window
Corrosion Resistant Aluminum Tube Hull Framing
Full Basement Exterior w/Enclosed, Heated Holding Tanks & Luggage Compartments
Molded Fiberglass Front Cap
Molded Fiberglass Rear Cap
Radius Roof with Ducted A/C
Side Fuel Fill
Sidewalls Framed with 1 1/2" Aluminum Tubing
Steel Basement Truss System
Vacu-bond® Floor
Vacu-bond® Hull Lamination Process
Terra Interior Décor


When it comes to making the interior of the Terra a reflection of your unique tastes, you can choose from a variety of eye-catching options.

Natural Taupe
Natural TaupeSofa
Natural TaupeAccent
Natural TaupeBedspread
Natural TaupeCountertop
Natural TaupeFlooring
Natural TaupeCarpet
Slately Sterling
Slately SterlingSofa
Slately SterlingAccent
Slately SterlingBedspread
Slately SterlingCountertop
Slately SterlingFlooring
Slately SterlingCarpet
Wood Cabinetry
CinnabarCinnabar

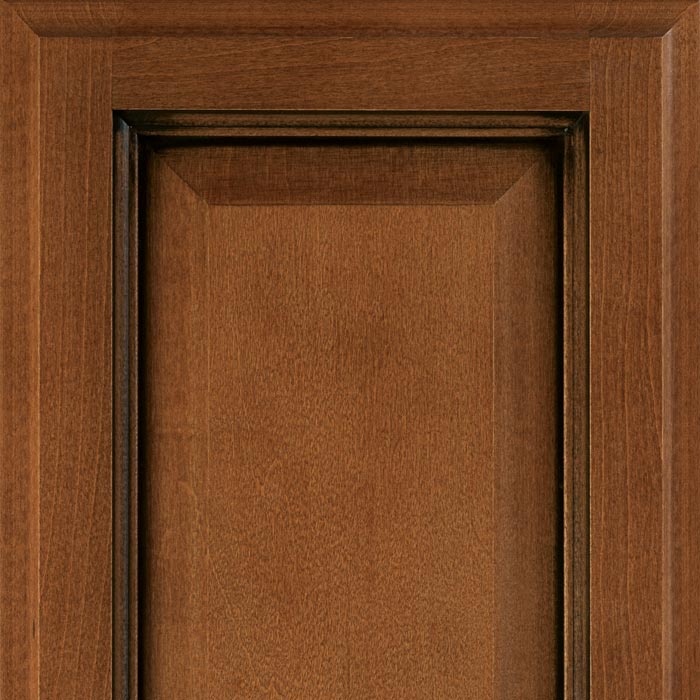

SpiceSpice
ButternutButternut
Click on any decor or cabinetry choice to see it larger.
Natural Taupe
Natural TaupeSofa
Natural TaupeAccent
Natural TaupeBedspread
Natural TaupeCountertop
Natural TaupeFlooring
Natural TaupeCarpet
Slately Sterling
Slately SterlingSofa
Slately SterlingAccent
Slately SterlingBedspread
Slately SterlingCountertop
Slately SterlingFlooring
Slately SterlingCarpet
Cinnabar Cinnabar
Spice Spice
Butternut Butternut
Colors are representations of actual samples and may be limited by standard display technology.
Please consult your dealer before making a purchase decision.
Terra Construction

21st-century Advanced Motorhome Construction

Fleetwood RV employs 21st century construction materials and techniques when manufacturing its motorhomes to provide the latest in durability and safety. We call it the F-21 Advantage, an industry-leading approach to motorhome engineering, manufacturing and materials that exceeds the standard. F-21 is demonstrated by 21 key proof points shared throughout all Fleetwood product classes, some of which are shown here.

Proof
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
+
×

2. Vacu-bond™ integrated walls

Fully sealed and insulated, these weather-resistant, vacuum-bonded assemblies combine 21st-century materials and construction for a straight and flat integrated wall that’s better suited to withstand the rigors of the road. An adhesive bonding process applies up to 415,000 pounds of vacuum pressure to the welded-aluminum sidewall frame, bead-foam panel insulation, thick Tuff Coat fiberglass skin and inner wall materials for over 30 minutes, far exceeding industry standards.
×

3. Premium full-body paint

Instead of the industry-standard gelcoat and vinyl, the Fleetwood standard offers full-painted exteriors—as on premium motorcoaches. Painted and clear-coated in a state-of-the-art facility, this finish has superior UV protection for finish longevity and higher resale value.
×

4. Dedicated full-length, metallic A/C ducting

Instead of cut-out foam channels, the Fleetwood standard provides insulated A/C ducting running the length of the coach with carefully placed outlets for cool comfort throughout.
×

5. Automatic Hydraulic Leveling Jacks

Industry standard electric leveling jacks are known to succumb to debris and water damage. That’s why reliable high-strength hydraulic jacks are used—to meet the Fleetwood standard.
×

6. Hide-A-Loft™ bed system

With a capacity that is hundreds of pounds above industry standard, Hide-A-Loft is better than “good enough.” Fleetwood has you resting on higher standards with reliable innovations.
×

7. Radiused and cambered entry door

The industry standard is to provide a flat door that can allow wind noise, so we use a higher-end solution that latches more securely and seals tighter.
×

8. Raised space frame foundation

Where other manufacturers set their floor on the frame, Fleetwood builds an elevated stand-off steel-welded frame with integrated framework, engineered for a stronger, more durable structure and true alignment that greatly expands basement storage. The Power Bridge® can be found on Fleetwood Class A Diesel models, Power Platform™ on the Class A Gas and the Elevated Capacity Bridge™ can be found on Class C models.
×

9. PowerLock System™ (Interlocking walls, ceiling)

Fleetwood’s interlocking aluminum extrusion wall-joint system integrates sidewall and roof assembly into one locked-together overall structure for long-term performance and durability.
×

10. CARE-Checks™ (QC line checks)

Taking cues from the automotive industry, Fleetwood enlists numerous quality inspectors in a CARE QC line. Each person is specialized in a specific discipline such as cabinets, doors or paint, instead of the industry standard, “one-person-checks-all” approach.
×

11. PowerFrames™ (Precision, welded aluminum interlocking frames)

No “hammer-to-fit,” stick-and-frame construction here. We engineer and build our wall, floor and roof frames on jigs to precise tolerances, with strong, modern materials and techniques, joined with interlocking extrusions (PowerLock System™) to fit precisely when mated with the steel-reinforced bridge structure.
×

12. Flat interior ceiling

An arched aluminum frame roof and flat ceiling design creates a strong, durable structure that provides a full 5” of insulation at the roof peak—right where the A/C ducts run, to insulate them from heat and provide maximum cabin insulation.
×

13. Tapered slideout box tops & debris awnings

Some slideout boxes incorporate a tapered roofline that sheds water away from the body to provide an additional level of moisture protection in addition to multiple bead-seals and the debris awning protection.
×

14. Rotocast molded storage boxes

Instead of industry-standard plywood (or worse), these molded boxes are extremely durable, look great and can be washed out with a hose.
×

15. Tuff-Pex™ plumbing system

It is a complete system of flexible and durable Oetiker® tubing, fittings and stainless steel rings, all with sub-zero ratings. With some extra thinking added in production we make it simpler to service by using red for hot and blue for cold.
×

17. Solid bead-foam Engineered Fit Insulation™

Fleetwood above-standard insulation material and process doesn’t allow settling or air gaps to form as with roll-type fiberglass used in industry-standard units.
×

18. Tuff-Roof™ low-maintenance roof system

The armor skin of the arched aluminum frame roof is extremely durable and long-lasting, yet easily repaired if damaged. Most Fleetwood models feature a lightweight and flexible TPO skin, with some offering a molded fiberglass skin; either option is low-maintenance and guaranteed for durability.
×

19. DrySeal™ Edge Coating (water-wicking wall edge coating)

Applied to every perimeter edge of the walls and window openings, the coating seals out moisture to inhibit delamination, swelling and mold problems for long-lasting durability.
×

20. Aluminum extruded slide ramps

The industry standard is pine wood ramps that can absorb moisture, crack, distort and rot. The Fleetwood standard demands these be made of modern materials to stay straight and last for years of trouble-free operation.
Learn more about the
F-21 Advantage »
