Drive like a champion

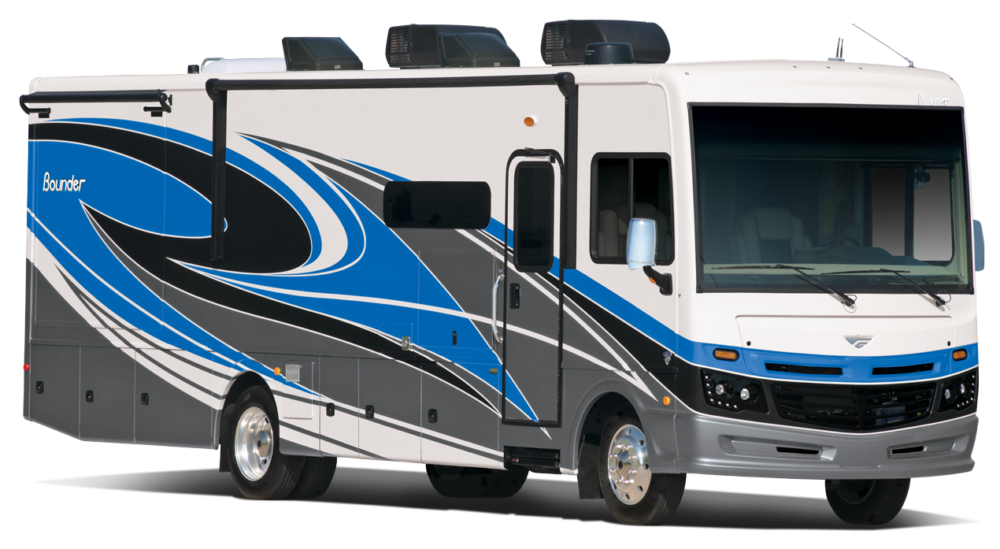

Even 36 years after its humble debut, the Fleetwood Bounder is still “The Greatest (selling RV) Of All Time.” To celebrate, we made updates where it matters most, improving on an already-winning combination, and keeping the name it’s famous for. The result? A luxury RV perfect for a legend of travel like you.
Things you’ll love about the Fleetwood Bounder:
A 1-2 punch of power and balance perfection, courtesy of new Power Platform® Ford chassis
An all-new electronic instrument panel that makes an already-superior driving experience even easier
Enhanced safety features like remote, power-heated mirrors w/turn indicators and side cameras
Durable, waterproof Tarkett® flooring
Kick back and relax by the built-in indoor fireplace
Stay connected even when there’s no cell service via a standard WiFiRanger™Sky4 system
Chassis Type
Ford® F-53 Motorhome Chassis
GVWR
22000
GCWR
26000
Rear Axle GAWR
15000
Front Axle GAWR
8000
Hitch Rating
5000
Tongue Rating
500
Front Suspension: Tapered Multi-Leaf
S
Rear Suspension: Tapered Multi-Leaf
S
4-Wheel Disc Brakes (Hydro Max) w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
Steering Damper (Front)
S
Sumo Springs® - Front/Rear
O
Liquid Springs®
O
Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque
S
210 Amp Alternator
S
TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode
S
Chassis Battery 78-amp
S
12V Heavy Duty Chassis Batteries
S
Front and Rear Tires
235/80R 22.5
Front and Rear Aluminum Wheels
S
Wheelbase
208"
Exterior Length
34'-3"
Exterior Width
102"
Exterior Height
12'10"
Interior Height
84"
Interior Width
96"
Interior Storage (cu.ft.)
123
Basement Storage (cu.ft.)
160
# of Slideouts
2
Fuel (gal)
80
Fresh Water (gal)
100
Gray Waste Water (gal)
58
Black Waste Water (gal)
42
Appliance Propane (gal) (WC)
25
Water Heater (gal)
10
Powerlock System™ - Interlocking Floor, Walls and Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Roof, Sidewalls and Floor
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments
S
Basement Storage Lighting w/Master Switch
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Power Platform Chassis Construction
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premium Full Body Paint
S
Fiberglass Wheel Well Skirts
S
TPO Roof
S
Electric Patio Awning w/LED lighting and Motion Sensor
S
Slide Out Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
S
Dual Pane Frameless Windows
S
Patio Lighting
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker lighting
S
Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves
S
Trailer Hitch w/7-Way Round Tow Connection
S
Unidirectional HD On-Air Antenna
S
Rear Ladder
S
Roof Vent Rain Covers
S
KING® Universal Satellite System
O
LP Connection
S
Automotive One-Piece Windshield
S
Driver and Passenger Slider Windows
S
Automotive Style Windshield Wiper System
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Daytime Running Lights
S
Black Instrument Gauges w/Electronic Information Center
S
Steering Wheel w/Tilt Column
S
Dash Air Conditioning and Heat
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Switch for Power/Heated Mirrors
S
Auxiliary Start Switch
S
Generator On/Off Switch
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Color Monitor for Side and Rear Cameras
S
Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera
S
Garmin® Collision Mitigation System
O
Sony 6 1/2" Stereo Speakers
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Chair w/Reclining Back and Swivel
S
Passenger Chair w/Reclining Back, Swivel and Manual Footrest
S
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlets
S
Automotive Style Dash w/Dual Monitors and Workstation
S
Engine Cover w/Snack Tray
S
Driver and Passenger ABS Side Consoles
S
Driver and Passenger Center Table
S
Front Power Roller Shade
S
Driver and Passenger Side Manual Roller Shades
S
Map Lights
S
Floor Mats
S
Dash Fans
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Sofa - Jackknife
S
Sofa - Theatre Seating
O
Facing Booth Dinette w/Dream Dinette Table
S
Freestanding Dinette w/Credenza
O
Solid Surface Galley Top
S
Surf-X Tops Throughout (Excluding Galley)
S
Feature Wall w/Accent Wall Covering
S
Slideout Fascia - Interior Wood Color Coordinating
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Vinyl Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Cedar Lined Wardrobe Interiors (Select Locations)
S
Manual Day/Night Roller Shades
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Washer/Dryer Prep - Combo
S
Washer/Dryer - Combo
O
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade
S
Master Battery Disconnect Switch
S
Metal Interior Grab Handle
S
Stainless Steel Residential Refrigerator
S
Cooktop - 3-Burner
S
Range w/Oven - 3-Burner Drop-In
O
Stainless Steel OTR Convection Microwave
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Sink - Stainless Steel, Deep Double Bowl
S
Solid Surface Sink Covers
S
Waste Basket
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Pantry Storage
S
Power Vent
S
King Size Serenity Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
120V/USB Ports
S
C-PAP Machine Prep - Bedroom Overhead
S
Stainless Steel Lavy Sink(s)
S
Residential Faucet(s)
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower Surround
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet w/Macerator
S
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft Drop Down Bed Opt.)
O
Soundbar
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Power Cord Reel
O
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 55 Amp
S
Inverter - Single 2000w Pure Sine
S
Generator - 5.5kW Onan®
S
Auto Gen Start
S
Neutral Loss Protection
S
Transfer Switch w/Reverse Polarity Protection
S
Energy Management System (EMS)
S
A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump
S
Furnace - 34,000 BTU
S
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Fresh Water Fill
S
Water Heater Bypass System
S
Exterior Shower
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank Flush San-T-Flush System
S
Cable TV/Satellite Hookup
S
Wi-Fi Ranger™ Sky4
S
Wi-Fi Ranger™ SkyPro Pack w/LTE and GPS
O
Solar Panel - 100W
S
Solar Panel - 300W
O
Chassis Type
Ford® F-53 Motorhome Chassis
GVWR
22000
GCWR
26000
Rear Axle GAWR
15000
Front Axle GAWR
8000
Hitch Rating
5000
Tongue Rating
500
Front Suspension: Tapered Multi-Leaf
S
Rear Suspension: Tapered Multi-Leaf
S
4-Wheel Disc Brakes (Hydro Max) w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
Steering Damper (Front)
S
Sumo Springs® - Front/Rear
O
Liquid Springs®
O
Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque
S
210 Amp Alternator
S
TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode
S
Chassis Battery 78-amp
S
12V Heavy Duty Chassis Batteries
S
Front and Rear Tires
235/80R 22.5
Front and Rear Aluminum Wheels
S
Wheelbase
228"
Exterior Length
36'-3"
Exterior Width
102"
Exterior Height
12'10"
Interior Height
84"
Interior Width
96"
Interior Storage (cu.ft.)
126
Basement Storage (cu.ft.)
180
# of Slideouts
2
Fuel (gal)
80
Fresh Water (gal)
100
Gray Waste Water (gal)
58
Black Waste Water (gal)
42
Appliance Propane (gal) (WC)
25
Water Heater (gal)
10
Tankless Water Heater
NA
Powerlock System™ - Interlocking Floor, Walls and Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Roof, Sidewalls and Floor
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments
S
Basement Storage Lighting w/Master Switch
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Power Platform Chassis Construction
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premium Full Body Paint
S
Fiberglass Wheel Well Skirts
S
TPO Roof
S
Electric Patio Awning w/LED lighting and Motion Sensor
S
Slide Out Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
S
Dual Pane Frameless Windows
S
Patio Lighting
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker lighting
S
Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves
S
Trailer Hitch w/7-Way Round Tow Connection
S
Unidirectional HD On-Air Antenna
S
Rear Ladder
S
Roof Vent Rain Covers
S
KING® Universal Satellite System
O
LP Connection
S
Automotive One-Piece Windshield
S
Driver and Passenger Slider Windows
S
Automotive Style Windshield Wiper System
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Daytime Running Lights
S
Black Instrument Gauges w/Electronic Information Center
S
Steering Wheel w/Tilt Column
S
Dash Air Conditioning and Heat
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Switch for Power/Heated Mirrors
S
Auxiliary Start Switch
S
Generator On/Off Switch
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Color Monitor for Side and Rear Cameras
S
Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera
S
Garmin® Collision Mitigation System
O
Sony 6 1/2" Stereo Speakers
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Chair w/Reclining Back and Swivel
S
Passenger Chair w/Reclining Back, Swivel and Manual Footrest
S
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlets
S
Automotive Style Dash w/Dual Monitors and Workstation
S
Engine Cover w/Snack Tray
S
Driver and Passenger ABS Side Consoles
S
Driver and Passenger Center Table
S
Front Power Roller Shade
S
Driver and Passenger Side Manual Roller Shades
S
Map Lights
S
Floor Mats
S
Dash Fans
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Sofa - Jack-knife
S
Manual Theater Seating
O
Facing Booth Dinette w/Dream Dinette Table
S
Free Standing Dinette w/Credenza
O
Solid Surface Galley Top
S
Surf-X Tops Throughout (Excluding Galley)
S
Feature Wall w/Accent Wall Covering
S
Slideout Fascia - Interior Wood Color Coordinating
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Vinyl Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Cedar Lined Wardrobe Interiors (Select Locations)
S
Manual Day/Night Roller Shades
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Washer/Dryer Prep - Combo
S
Washer/Dryer - Combo
O
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade
S
Master Battery Disconnect Switch
S
Metal Interior Grab Handle
S
Stainless Steel Residential Refrigerator
S
Cooktop - 3-Burner
S
Range w/Oven - 3-Burner Drop-In
O
Stainless Steel OTR Convection Microwave
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Sink - Stainless Steel, Deep Double Bowl
S
Solid Surface Sink Covers
S
Waste Basket
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Pantry Storage
S
Power Vent
S
King Size Serenity Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
120V/USB Ports
S
C-PAP Machine Prep - Bedroom Overhead
S
Residential Lavy Sink(s)
S
Stainless Steel Lavy Sink(s)
S
Residential Faucet(s)
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower Surround
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet w/Macerator
S
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Drop Down Bed.)
O
Soundbar
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Power Cord Reel
O
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 55 Amp
S
Inverter - Single 2000w Pure Sine
S
Generator - 5.5kW Onan®
S
Auto Gen Start
S
Neutral Loss Protection
S
Transfer Switch w/Reverse Polarity Protection
S
Energy Management System (EMS)
S
A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump
S
Furnace - 34,000 BTU
S
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Fresh Water Fill
S
Water Heater Bypass System
S
Exterior Shower
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank Flush San-T-Flush System
S
Cable TV/Satellite Hookup
S
Wi-Fi Ranger™ Sky4
S
Wi-Fi Ranger™ SkyPro Pack w/LTE and GPS
O
Solar Panel - 100W
S
Solar Panel - 300W
O
Chassis Type
Ford® F-53 Motorhome Chassis
GVWR
26000
GCWR
30000
Rear Axle GAWR
17500
Front Axle GAWR
9000
Hitch Rating
8000
Tongue Rating
800
Front Suspension: Tapered Multi-Leaf
S
Rear Suspension: Tapered Multi-Leaf
S
4-Wheel Disc Brakes (Hydro Max) w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
Steering Damper (Front)
S
Sumo Springs® - Front/Rear
O
Liquid Springs®
O
Ford® 7.3L Triton V8, 350 HP w/468 lb. Torque
S
210 Amp Alternator
S
TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode
S
Chassis Battery 78-amp
S
12V Heavy Duty Chassis Batteries
S
Front and Rear Tires
255/80R 22.5
Front and Rear Aluminum Wheels
S
Wheelbase
242"
Exterior Length
38'-9"
Exterior Width
102"
Exterior Height
12'10"
Interior Height
84"
Interior Width
96"
Interior Storage (cu.ft.)
171
Basement Storage (cu.ft.)
170
# of Slideouts
2
Fuel (gal)
80
Fresh Water (gal)
100
Gray Waste Water (gal)
90
Black Waste Water (gal)
50
Appliance Propane (gal) (WC)
25
Tankless Water Heater
S
Powerlock System™ - Interlocking Floor, Walls and Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Roof, Sidewalls and Floor
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments
S
Basement Storage Lighting w/Master Switch
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Power Platform Chassis Construction
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premium Full Body Paint
S
Fiberglass Wheel Well Skirts
S
TPO Roof
S
Electric Patio Awning w/LED lighting and Motion Sensor
S
Slide Out Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
S
Dual Pane Frameless Windows
S
Patio Lighting
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker lighting
S
Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves
S
Trailer Hitch w/7-Way Round Tow Connection
S
Unidirectional HD On-Air Antenna
S
Rear Ladder
S
Roof Vent Rain Covers
S
KING® Universal Satellite System
O
LP Connection
S
Automotive One-Piece Windshield
S
Driver and Passenger Slider Windows
S
Automotive Style Windshield Wiper System
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Daytime Running Lights
S
Black Instrument Gauges w/Electronic Information Center
S
Steering Wheel w/Tilt Column
S
Dash Air Conditioning and Heat
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Switch for Power/Heated Mirrors
S
Auxiliary Start Switch
S
Generator On/Off Switch
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Color Monitor for Side and Rear Cameras
S
Sony® 9" Stereo w/AM/FM/Bluetooth®/ MP3/USB - Phone Control - Android Auto™ & Apple® Car Play® w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera
S
Garmin® Collision Mitigation System
O
Sony 6 1/2" Stereo Speakers
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Chair w/Reclining Back and Swivel
S
Passenger Chair w/Reclining Back, Swivel and Manual Footrest
S
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
110V AC Outlets
S
Automotive Style Dash w/Dual Monitors and Workstation
S
Engine Cover w/Snack Tray
S
Driver and Passenger ABS Side Consoles
S
Driver and Passenger Center Table
S
Front Power Roller Shade
S
Driver and Passenger Side Manual Roller Shades
S
Map Lights
S
Floor Mats
S
Dash Fans
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Sofa - Jackknife
S
Manual Theater Seating
O
Facing Booth Dinette w/Dream Dinette Table
S
Solid Surface Galley Top
S
Surf-X Tops Throughout (Excluding Galley)
S
Feature Wall w/Accent Wall Covering
S
Slideout Fascia - Interior Wood Color Coordinating
S
Electric Fireplace (Living Area)
S
Interior Soft Touch Vinyl Ceiling
S
Vinyl Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Cedar Lined Wardrobe Interiors (Select Locations)
S
Manual Day/Night Roller Shades
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Washer/Dryer Prep - Combo
S
Washer/Dryer - Combo
O
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade
S
Master Battery Disconnect Switch
S
Metal Interior Grab Handle
S
Stainless Steel Residential Refrigerator
S
Cooktop - 3-Burner
S
Range w/Oven - 3-Burner Drop-In
O
Stainless Steel OTR Convection Microwave
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Sink - Stainless Steel, Deep Double Bowl
S
Solid Surface Sink Covers
S
Waste Basket
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Pantry Storage
S
Power Vent
S
King Size Serenity Memory Foam Mattress
S
Bunk Beds (Mutli-Purpose Flip Bunk for Wardrobe and Seating w/Doors)
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
120V/USB Ports
S
C-PAP Machine Prep - Bedroom Overhead
S
Stainless Steel Lavy Sink(s)
S
Residential Faucet(s)
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower Surround
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet w/Macerator
S
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Bunk Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Drop Down Bed)
O
Soundbar
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Power Cord Reel
O
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 55 Amp
S
Inverter - Single 2000w Pure Sine
S
Generator - 5.5kW Onan®
S
Auto Gen Start
S
Neutral Loss Protection
S
Transfer Switch w/Reverse Polarity Protection
S
Energy Management System (EMS)
S
A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump
S
Furnace - Dual 30,000/20,000 BTU
S
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Fresh Water Fill
S
Water Heater Bypass System
S
Exterior Shower
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank Flush San-T-Flush System
S
Cable TV/Satellite Hookup
S
Wi-Fi Ranger™ Sky4
S
Wi-Fi Ranger™ SkyPro Pack w/LTE and GPS
O
Solar Panel - 100W
S
Solar Panel - 300W
O
Chassis Type
Ford F-53 Motorhome Chassis
GVWR
26000
GCWR
30000
Rear Axle GAWR
17500
Front Axle GAWR
9000
Hitch Rating
8000
Tongue Rating
800
Front suspension: Tapered Multi-Leaf
S
Rear suspension: Tapered Multi-Leaf
S
4-Wheel Disc Brakes (Hydro Max) w/ABS
S
Tuned Sachs Shocks
S
Power Assisted Steering
S
Steering Damper (Front)
S
Sumo Springs® - Front/Rear
O
Liquid Springs
O
Ford 7.3L Triton V8, 350 HP w/468 lb. Torque
S
210 Amp Alternator
S
TorqShift® 6-Speed Automatic w/Overdrive and Tow/Haul Mode
S
Chassis Battery 78-amp
S
12V Heavy Duty Chassis Batteries
S
Front and Rear Tires
255/80R 22.5
Front and Rear Aluminum Wheels
S
Wheelbase
242"
Exterior Length
36'-3"
Exterior Width
102"
Exterior Height
12'10"
Interior Height
84"
Interior Width
96"
Interior Storage (cu.ft.)
155
Basement Storage (cu.ft.)
180
# of Slideouts
2
Fuel (gal)
80
Fresh Water (gal)
100
Gray Waste Water (gal)
58
Black Waste Water (gal)
42
Appliance Propane (gal) (WC)
25
Water Heater (gal)
10
Powerlock System™ - Interlocking Floor, Walls and Roof
S
Dryseal Edge Coating for all Ceilings, Walls and Floors
S
Vacu-Bond™ Aluminum Framed Constructed Roof, Sidewalls and Floor
S
Premium Gel Exterior Vetrosina Fiberglass Skin (no wood substrate)
S
High Density Polystyrene Insulated Sidewalls, Roof and Floor
S
Quiet Insulated, Ducted A/C System
S
Full Pass Through Basement Storage w/Easy Clean Rotocast Compartments
S
Basement Storage Lighting w/Master Switch
S
Heated Fresh Water and Holding Tank Compartments (w/Furnace Operational)
S
Power Platform Chassis Construction
S
Steel Constructed Entry Step Box
S
Electric Slideout Systems
S
Painted Steel Frame Chassis Construction
S
Full Coverage Heavy Duty Undercoating
S
CSA Build
O
Fiberglass Front Cap Assembly
S
Fiberglass Rear Cap Assembly
S
4-Color Premium Full Body Paint
S
Fiberglass Wheel Well Skirts
S
TPO Roof
S
Electric Patio Awning w/LED lighting and Motion Sensor
S
Slide Out Awning Toppers Above All Slideouts
S
Entry Door w/Radiused Upper, Deadbolt and Screen Door
S
Acrylic Lighted Grab Handle at Entry Door
S
Automatic Entrance Steps
S
Side Swing Aluminum Bus-Style Baggage Doors w/Locking Handles
S
Dual Pane Frameless Windows
S
Patio Lighting
S
Automatic Hydraulic Leveling Jacks
S
Front, Side and Rear Clearance and Marker lighting
S
Service Station - Water Pump Switch, Exterior Shower, Black Tank Flush, City Water Hookup & Drainage Valves
S
Trailer Hitch w/7-Way Round Tow Connection
S
Unidirectional HD On-Air Antenna
S
Rear Ladder
S
Roof Vent Rain Covers
S
KING Universal Satellite System
O
LP Connection
S
Automotive One-Piece Windshield
S
Driver and Passenger Slider Windows
S
Automotive Style Windshield Wiper System
S
Remote Power/Heated Mirrors w/Turn Signals and Side Cameras
S
Lower Front Clear Protective Film
S
Daytime Running Lights
S
Black Instrument Gauges w/Electronic Information Center
S
Steering Wheel w/Tilt Column
S
Dash Air Conditioning and Heat
S
Electronic Cruise Control
S
Windshield Wipers w/Delay
S
Switch for Power/Heated Mirrors
S
Auxiliary Start Switch
S
Generator On/Off Switch
S
Momentary Battery Booster Switch - Connecting Chassis and House Batteries
S
Color Monitor for Side and Rear Cameras
S
Sony® 9" Stereo w/AM/FM/Bluetooth/ MP3/USB - Phone Control - Android Auto & Apple® Car Pla®y w/Navigation - Siri Eyes Free - Built in HD Radio - Sirius/XM® Ready (Requires Subscription) – Backup camera
S
Garmin Collision Mitigation System
O
Sony® 6 1/2" Stereo Speakers
S
Sirius/XM® Satellite Radio Ready (Requires Subscription)
S
Driver Chair w/Reclining Back and Swivel
S
Passenger Chair w/Reclining Back, Swivel and Manual Footrest
S
Seat Belts - 3 Point Driver and Passenger
S
12V and USB Accessory Ports
S
120V AC Outlets
S
Automotive Style Dash w/Dual Monitors and Workstation
S
Engine Cover w/Snack Tray
S
Driver and Passenger ABS Side Consoles
S
Driver and Passenger Center Table
S
Front Power Roller Shade
S
Driver and Passenger Side Manual Roller Shades
S
Map Lights
S
Floor Mats
S
Dash Fans
S
Automatic Leveling Jacks Touchpad Controls
S
Hide-A-Loft™ Power Drop-Down Overhead Bunk w/LED TV
O
Sofa - Jack-knife
S
Sofa - Theater Seating
O
Facing Booth Dinette w/Dream Dinette Table
O
Solid Surface Galley Top
S
Surf-X Tops Throughout (Excluding Galley)
S
Feature Wall w/Accent Wall Covering
S
Slideout Fascia - Interior Wood Color Coordinating
S
Interior Soft Touch Vinyl Ceiling
S
Vinyl Tile Flooring
S
Full Extension Drawer Guides w/Latches
S
Coordinating Window Treatments
S
Hidden Hinge Cabinet Doors
S
Cedar Lined Wardrobe Interiors (Select Locations)
S
Manual Day/Night Roller Shades
S
Energy Efficient LED 3" Flush Mount Ceiling Lighting
S
Washer and Dryer Prep
S
Washer and Dryer
S
Entry Step w/LED Accent Lighting
S
Entry Door Manual Roller Shade
S
Master Battery Disconnect Switch
S
Metal Interior Grab Handle
S
Stainless Steel Residential Refrigerator
S
Cooktop - 3-Burner
S
Range w/Oven - 3-Burner Drop-In
O
Stainless Steel OTR Convection Microwave
S
Shadow Box Glass Tile Backsplash w/Window and Shade
S
Sink - Stainless Steel, Farmhouse Sink
S
Solid Surface Sink Covers
S
Waste Basket
S
Residential Faucet w/Pullout Sprayer
S
Adjustable Shelving
S
Pantry Storage
S
Power Vent
S
King Size Encore Memory Foam Mattress
S
Designer Bedspread and Pillows w/Shams
S
Headboard
S
120V/USB Ports
S
C-PAP Machine Prep - Bedroom Overhead
S
Residential Lavy Sink(s)
S
Stainless Steel Lavy Sink(s)
S
Residential Faucet(s)
S
Medicine Cabinet w/Mirror
S
Fiberglass Shower Surround
S
Glass Shower Door
S
Shower Skylight
S
Power Vent(s)
S
Designer Shower Head Assembly
S
Porcelain Toilet w/Macerator
S
LED TV (Bedroom)
S
LED TV (Living Area)
S
LED TV (Front Overhead w/Hide-A-Loft™ Drop Down Bed Opt.)
O
Soundbar
S
Exterior Entertainment Center w/LED TV and Bluetooth® Soundbar
S
Multiplex Wiring System
S
Batteries: (4) 6V Deep Cycle House Batteries
S
Power Cord Reel
S
Service Panel: 50 Amp, 120 Volt
S
Power Converter: 55 Amp
S
Inverter - Single 2000w Pure Sine
S
Generator - 5.5kW Onan®
S
Auto Gen Start
S
Neutral Loss Protection
S
Transfer Switch w/Reverse Polarity Protection
S
Energy Management System (EMS)
S
A/C - Dual 15,000 BTU w/Chill Grill & Rear Heat Pump
S
Furnace - Dual 30,000/20,000 BTU
S
CO and Smoke Detectors, Fire Extinguisher
S
Gravity Fresh Water Fill
S
Water Heater Bypass System
S
Exterior Shower
S
High Capacity Water Pump
S
Water Filtration System (Whole Coach)
S
Black Holding Tank Flush San-T-Flush System
S
Cable TV/Satellite Hookup
S
Wi-Fi Ranger™ Sky4
S
Wi-Fi Ranger™ SkyPro Pack w/LTE and GPS
O
Solar Panel - 100w
S
Solar Panel - 300w
O
© 2025 REV Group, INC. All Rights Reserved
